Roll Turning Lathe Machine

Manufacturer of a wide range of products which include roll turning lathe machine, sugar roll turning lathe machine, 26 ft roll turning lathe machine and roller grooving lathe machine.

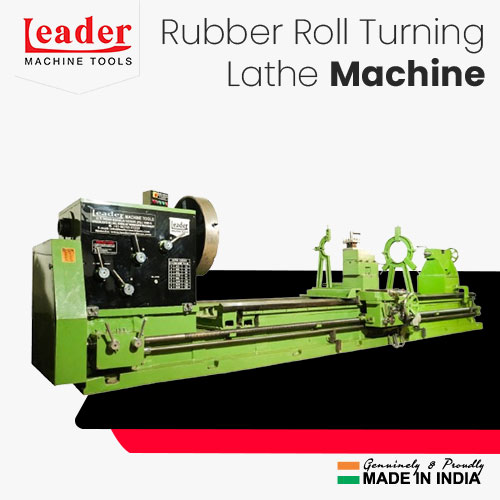

Roll Turning Lathe Machine

REQUEST CALLBACK

Roll Turning Lathe Machine
Get Best Quote

Thanks for Contacting Us.

Approx. Rs 2 Lakh / PieceGet Latest Price

Product Details:
Automatic GradeAutomatic , Semi-Automatic
LayoutHorizontal, Vertical
ModelLeader 850 X 3000 to Leader 1550 X 10000
Length of Bed16"-44"
Width of Bed24"-44"
Center Height22"-40"
ABC2550-10000 mm

We are dealing with Roll Turning Lathe Machine and our product is made up of good quality.


    Send Bulk Enquiry

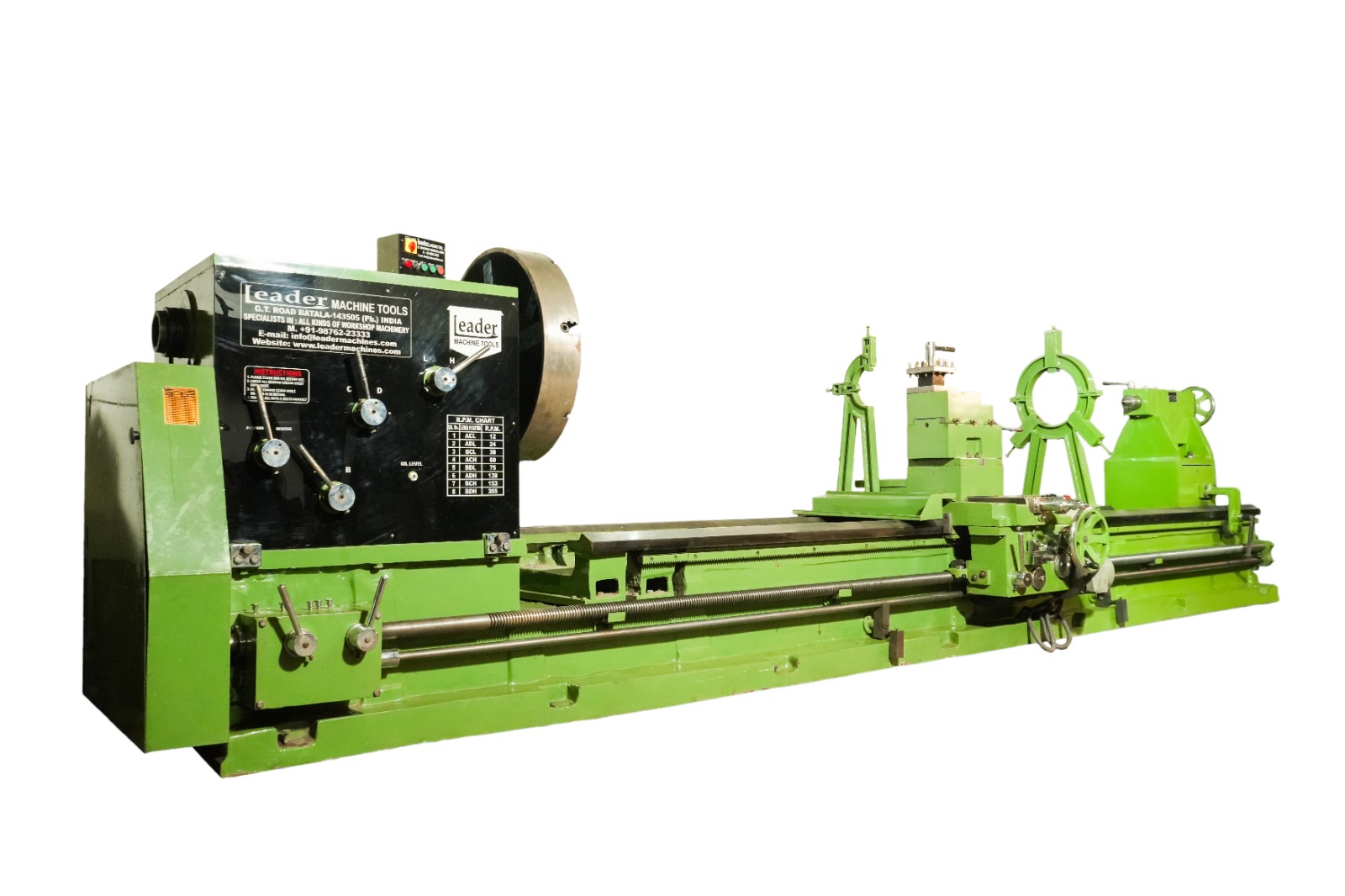

    Sugar Roll Turning Lathe Machine

    REQUEST CALLBACK

    Sugar Roll Turning Lathe Machine
    Get Best Quote

    Thanks for Contacting Us.

    Approx. Rs 7 Lakh / PieceGet Latest Price

    Product Details:
    Minimum Order Quantity1 Piece
    Automatic GradeAutomatic , Semi-Automatic, Manual
    LayoutHorizontal
    Brand/MakeLeader
    ModelLMT-VTL-1000,LMT-VTL-1200, LMT-VTL-1500, LMT-VTL-2000 ,LMT-VTL-2500 , LMT-VTL-3000
    Table Diameter1000 to 3000
    Maximum Turning Dia1200 to 3250
    Working Height Under Cross Rail700 to 2000
    Ram Head on Cross RailOne
    Vertical Travel of Ram Head450-900
    Swivel Angle of Ram Head+/-35
    Table Speeds6
    Range of Table Speed3 to 30 , 9 to 90
    Feeds for Horizontal and Vertical Travels6

    We are offering Sugar Roll Turning Lathe Machine to our clients.
    Send Bulk Enquiry

    26 Ft Roll Turning Lathe Machine

    REQUEST CALLBACK

    26 Ft Roll Turning Lathe Machine
    • 26 Ft Roll Turning Lathe Machine
    • 26 Ft Roll Turning Lathe Machine
    • 26 Ft Roll Turning Lathe Machine
    • 26 Ft Roll Turning Lathe Machine
    Get Best Quote

    Thanks for Contacting Us.

    Approx. Rs 13 Lakh / PieceGet Latest Price

    Product Details:
    Minimum Order Quantity1 Piece
    Lathe Machine TypeROLL TURNING LATHE MACHINE
    Usage/ApplicationSHIP BUILDING,MINING,STEEL ROLLING MILLS,TEXTILE,OIL MILLS AND POWER PLANTSS,REPAIRING SHOPS,W
    Bed Width32" / 800 MM
    LayoutHorizontal
    Brand/MakeLEADER
    ModelEDLM-750
    Machine TypeHEAVY DUTY ROLL TURNING LATHE MACHINE
    Power SourceMOTOR
    No. Spindle Speed6
    Voltage380 V
    Weight11000 KG
    Main Motor15 H.P
    Spindle NoseMT-5
    Swing In Gap Diameter80" / 2000 MM
    Swing Over Bed60" / 1500 MM
    Automatic GradeAutomatic
    MaterialCAST IRON
    Rust ResistantYes
    Center Height30" / 750 MM
    MakeLEADER MACHINE TOOLS
    Motor Speed1440
    Height30" / 750 MM
    Max Swing Diameter42" / 1050 MM
    Length26 FT
    Power15 H.P
    Width32" / 800 MM

    Heavy Duty Roll Turning Lathe Machines Can Rotates The Workpiece On Its Axis To Perform Various Operations Such As Cutting, Sanding, Drilling, Knurling And Many Others. These Machines Are Highly Versatile And Ideal For Precisely Machining Relatively Hard Object. Owing To High Efficiency, Robust Structure And Long Service Life, These Machines Find Application In Ship Building, Mining, Steel Rolling Mills, Textile, Oil Mills And Power Plantss, Repairing Shops, Workshop, Paper Mills And Tool Room.


    Additional Information:

    • Production Capacity: 5500 MM X 1150
    • Delivery Time: READY STOCK
    Send Bulk Enquiry

    View PDF

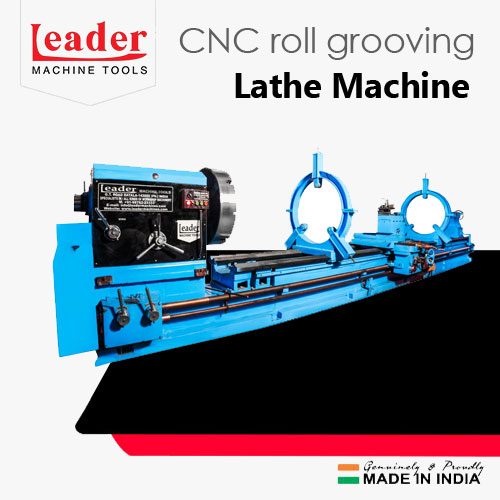

    Roller Grooving Lathe Machine

    REQUEST CALLBACK

    Roller Grooving Lathe Machine
    Ask for Price

    Thanks for Contacting Us.

    Product Price :Get Latest Price

    Product Details:
    Lathe Machine TypeHorizontal Lathe
    Max Swing Over Bed0-250 mm, 250-500 mm
    Max Spindle Speed0-500 rpm
    Max Turning Diameter0-500 mm, 500-1000 mm
    Power7.5 kw
    Max work piece length2500 mm
    Voltage220 V

    We Manufacturer and Supplier of Roll Grinding And Grooving Machine.

    These Roll Grinding And Grooving Machines can grind and groove rolls from all types of flour mill roll size (diameter x length) 10" x 50" or any other required size.

    Our range of Roll Grinding And Grooving Machines serve to grind and groove blunt chilled rolls and is also useful in the industry where chilled rolls are employed for similar purposes.
    • Extra Heavy Duty & Extra Long alloy casting bed.
    • Special headstock Gear.
    • Single start worm of the headstock.
    • Steel clutch in the headstock.
    • Grinding wheel black silicon carbide (especially for chilled rolls).
    • Fitting of the grinding wheel with two SKF bearing from one side.
    • Hydraulic pump japan makes (Yuken the best in the world).
    • Fully Hqnned & Micro finished cylinder from inside.
    • Modern Hydraulic system allowing smooth, continuously variable table speed for optimum utilization of cutting speed.
    • Change from grinding to fluting position in few minutes.
    • The number of flutes (150-1200) Easy to set by exchanging the change gears.
    • The convenient operating height of grinding & fluting head.
    • Lubrication of the table guide waves fitted & operated the pump.
    • Easy operation by the operator control.
    • Machine will groove from 8 Groove / Inches 8-10-12-14-16-18-20-22-24-26-28-30

    Design: Bed & Table of this machine rigid hollow castings internally ribbed, and able to resist the greatest strain.

    The feed motion of the table is affected by hydraulic pressure which secures more vibration free travel of the table during the pace of reversing.

    The adjustment of the table speed is infinitely variable in accordance with the respective operations and allows full utilization of the optimum cutting speed of our grooving tools.

    The pillow blocks can be furnished with inter-changeable bushes to suit any normal diameter of roll spindles. It is possible to adjust both pillows in a correctly horizontal & vertical position.
    Send Bulk Enquiry
