RADIAL DRILL MACHINE

Our product range includes a wide range of geared radial drilling machine, heavy duty radial drilling machine, radial drilling machine, bench drilling machine, radial drill machine and geared radial drill machine.

Geared Radial Drilling Machine

REQUEST CALLBACK

Geared Radial Drilling Machine
Approx. Rs 2.5 Lakh / Piece
Get Best Quote

We are offering Geared Radial Drilling Machine to our clients.

Specifications:

Drill HeadLMT-40ALMT-40BLMT-50ALMT-50BLMT-65LMT-75LMT-85
Drilling Capacity (In steel/ cast iron)40/5040/5050/6050/6065/7575/8585/95
Drilling Depth180180225250325355400
Taper Spindle Nose SocketMT-4MT-4MT-5MT-5MT-5MT-6MT-6
No. of Spindle Speeds/ Range (RPM)6 (55-665)12 (56-1000)9 (45-750)12 (45-1000)12 (18-810)12 (18-810)12 (16-1250)
No’s of Spindle Feeds/ Range (mm/rev.)3 (0.1-0.2)3 (0.1-0.2)3 0.1-0.2)6 (0.125-1.25)6 (0.125-1.25)6 (0.125-1.25)6 (.08-1.0)
Drill Power1.5 kW2.2 kW2.2 kW3.7 kW3.7 kW5.5 kW7.5 kW
Yes! I am interested

Heavy Duty Radial Drilling Machine

REQUEST CALLBACK

Heavy Duty Radial Drilling Machine
Approx. Rs 1.2 Lakh / Piece
Get Best Quote
Product Details:
Minimum Order Quantity1 Piece
Automatic GradeAutomatic, Semi-Automatic, Manual
Hole Diameter0-25 mm, 25-50 mm, 50-100 mm, 100-150 mm

We are offering the best quality of Heavy Duty Radial Drilling Machine.

Specifications:

Drill HeadLMT-40ALMT-40BLMT-50ALMT-50BLMT-65LMT-75LMT-85
Drilling Capacity (In steel/ cast iron)40/5040/5050/6050/6065/7575/8585/95
Drilling Depth180180225250325355400
Taper Spindle Nose SocketMT-4MT-4MT-5MT-5MT-5MT-6MT-6
No. of Spindle Speeds/ Range (RPM)612912121212
(55-665)(56-1000)(45-750)(45-1000)(18-810)(18-810)(16-1250)
No’s of Spindle Feeds/ Range (mm/rev.)3336666
(0.1-0.2)(0.1-0.2)0.1-0.2)(0.125-1.25)(0.125-1.25)(0.125-1.25)(.08-1.0)
Drill Power1.5 kW2.2 kW2.2 kW3.7 kW3.7 kW5.5 kW7.5 kW
Yes! I am interested

Radial Drilling Machine

REQUEST CALLBACK

Radial Drilling Machine
Approx. Rs 1.2 Lakh / Piece
Get Best Quote
Product Details:
Minimum Order Quantity1 Piece
Automatic GradeAutomatic, Semi-Automatic, Manual
Hole Diameter0-25 mm, 25-50 mm, 100-150 mm

We are offering superior quality of Radial Drilling Machine.

Application:
  • Automobile industries

Specifications:

DRILL HEADLRDM-32BSAR-40BSAR-40CSAR-50BSAR-50CSAR-65BSAR-75B
Drilling Capacity (in steel/cast iron)32 /4040/5040/5050/6050/6065/7575/85
Drilling Depth140180180225250325355
Taper Spindle Nose SocketMT-3MT-4MT-4MT-5MT-5MT-5MT-6
No. of Spindle Speeds/Range (RPM)6(72-1000)6(55-665)12(56-1000)9(45-750)12(45-1000)12(18-810)12(18-810)
No. of Spindle Feeds/Range (mm/rev.)2(0.1 a 0.2)3(0.1 to 0.2)3(0.1 to 0.2)3(0.1 to 0.2)6(0.125 to 1.25)-6(0.125 to 1.25)
Drill Power1.5 kW1.5 kW2.2 kW2.2 kW3.7 kW3.7 kW5.5 kW
Yes! I am interested

View PDF

Bench Drilling Machine

REQUEST CALLBACK

Bench Drilling Machine
Approx. Rs 10,000 / Piece
Get Best Quote

We are offering Bench Drilling Machine to our clients.

Applications:
  • Automotive
  • Furniture
  • Electrical
  • Construction
  • Heavy industry



Specifications:
Drilling Radius Max.1050105011001300170019002200
Drilling Radius Min.375375450450500600650
Drilling Head Traverse675675650850120013001550
Distance Base Plate to Spindle Max.1000100013001300150017501800
Distance Base Plate to Spindle Min.225225225325300400550
Diameter of Column Sleeve255255310310355405450
Working Surface of Base Plate900*680900*680920*8301120*8301500*10201850*11602130*1300
Yes! I am interested

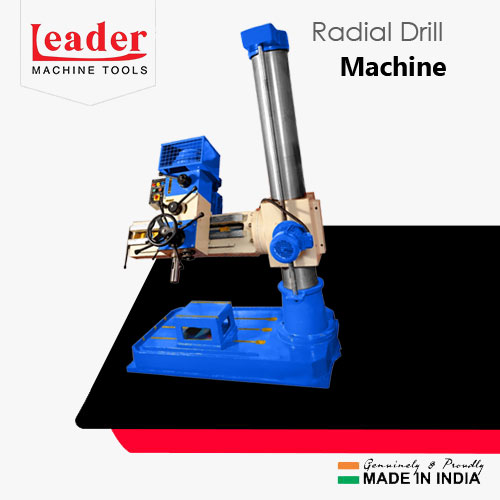

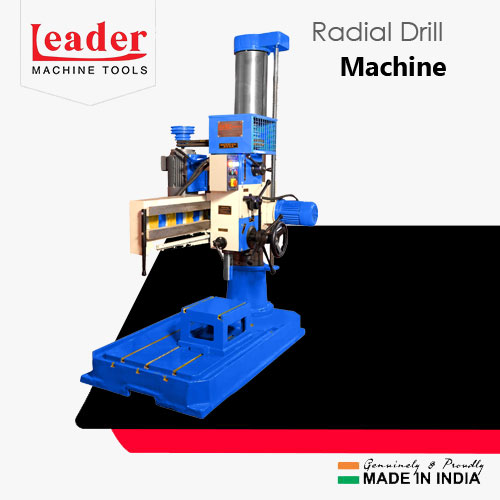

Radial Drill Machine

REQUEST CALLBACK

Radial Drill Machine
Approx. Rs 1 Lakh / Piece
Get Best Quote

We are offering Radial Drill Machine to our clients.

Specifications:
ModelLMT-RDM25LMT-RDM32LMT-RDM40LMT-RDM50
Drilling Capacity ion Cast Iron25mm32mm40mm50mm
Drilling Capacity in Steel20mm25mm30mm40mm
Maximum Distance From Spindle To Column24’’32’’36’’48’’
Minimum Distance From Spindle To Column10’’12’’12’’18’’
Maximum Distance From Spindle To Base Plate30’’34’’40’’50’’
Diameter Of Column5.1/2’’7’’9’’10’’
Range Of Spindle Speed & Rpm6-80-70 RPM6-80-700 RPM6-50-760 RPM6-40-750 RPM
Travel Of Spindle6’’8’’9’’12’’
Spindle Morse Taper No.34’’45
Electrical Motor Required1 H.P2 H.P2H.P3H.P
Yes! I am interested

Geared Radial Drill Machine

REQUEST CALLBACK

Geared Radial Drill Machine
Approx. Rs 2 Lakh / Piece
Get Best Quote

We are offering Geared Radial Drill Machine to our clients.

Specifications:

Drilling Radius Max.1050105011001300170019002200
Drilling Radius Min.375375450450500600650
Drilling Head Traverse675675650850120013001550
Distance Base Plate to Spindle Max.1000100013001300150017501800
Distance Base Plate to Spindle Min.225225225325300400550
Diameter of Column Sleeve255255310310355405450
Working Surface of Base Plate900*680900*680920*8301120*8301500*10201850*11602130*1300
Length*Width*Height1480* 700*2001480 *700*2001585 *850*2001800 *850*2002265 *1040*2252650 *1180*2253150 *1300*250
Arm Elevator Motor0.75 kW0.75 kW1.5 kW1.5 kW2.2 kW3.7 kW3.7 kW
Standard Box Table400 *350*350550 *420*420550 *420*420550 *420*420600 *500*500600 *500*5001000 *750*500
Yes! I am interested
